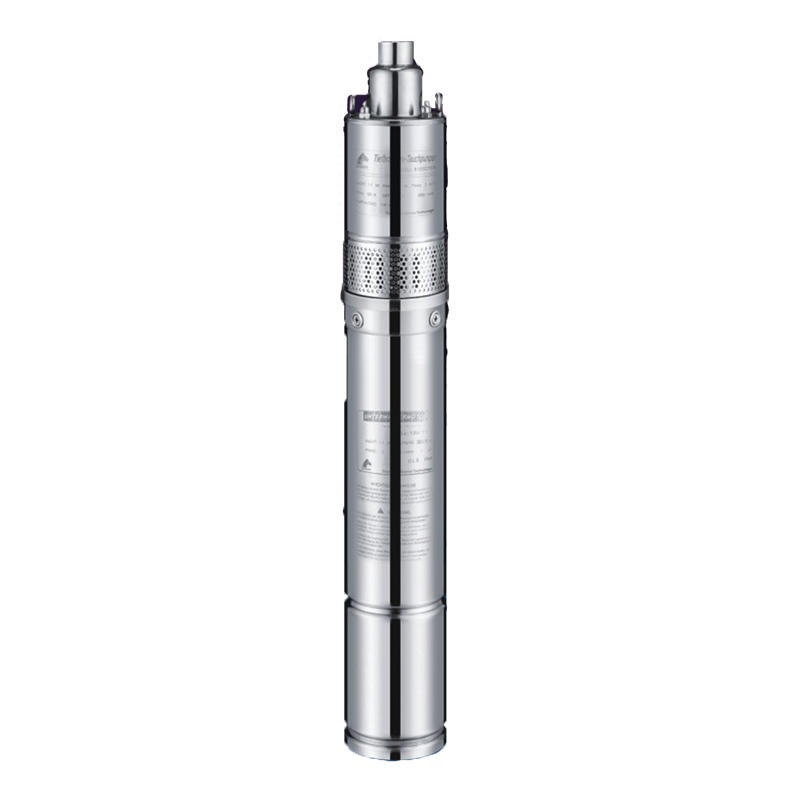

3QG/4QG
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +40oC
Maximum sand content: 3%
Maximum immersion: 15m
3QG minimum well diameter: 3"
4QG minimum well diameter: 4"
Motor and pump
Rewindable motor
Single-phase: 220V-240V / 50Hz
Three-phase: 380V-415V / 50Hz

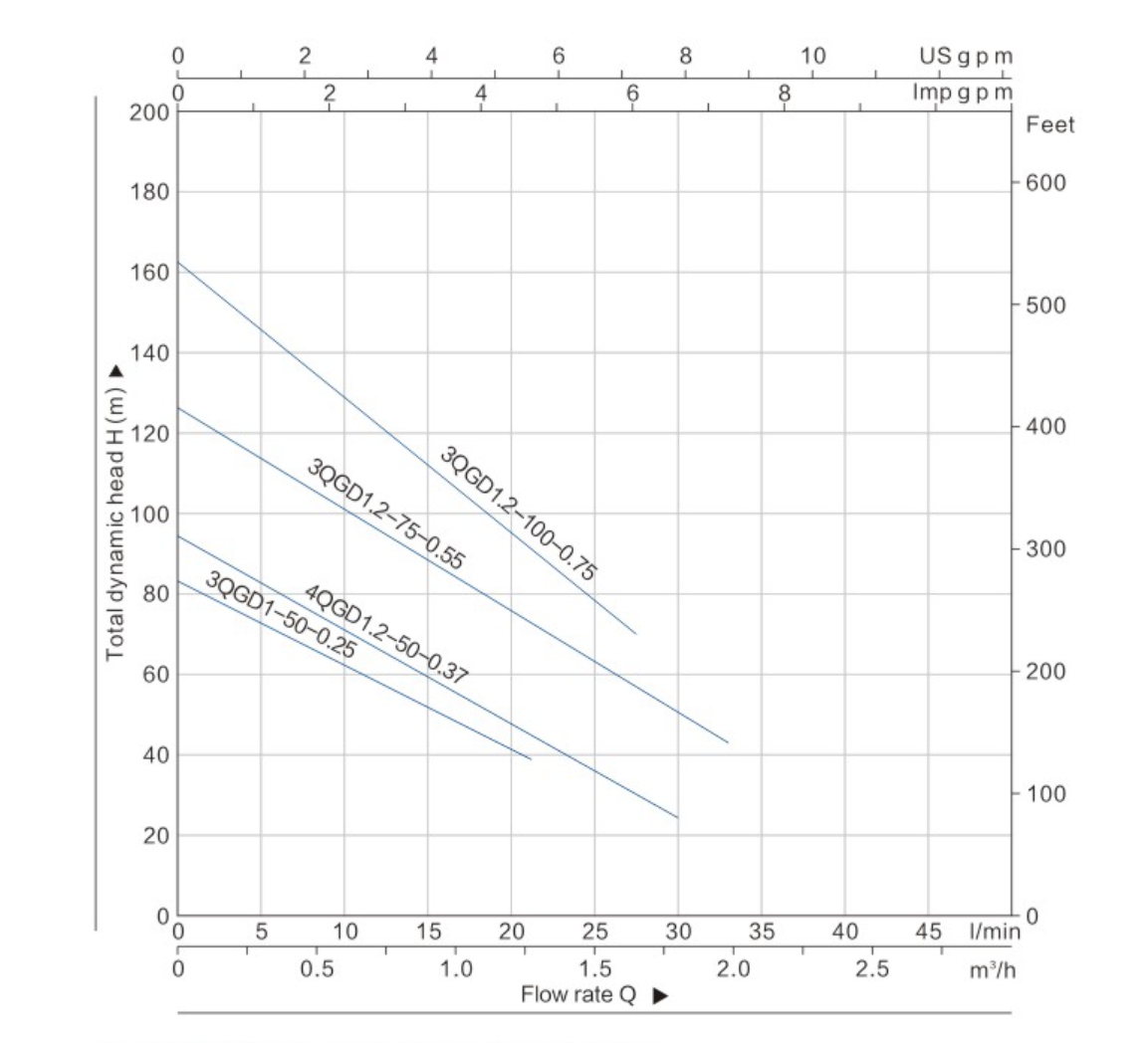

Curve tolerance according to ISO 9906
Options on request
Sprecial mechanical seal
Other voltages or frequency 60 Hz
