3SD2.5
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +35oC
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 3"
Motor and pump
Rewindable motor
Single-phase: 220V-240V / 50Hz
Three-phase: 380V-415V / 50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed

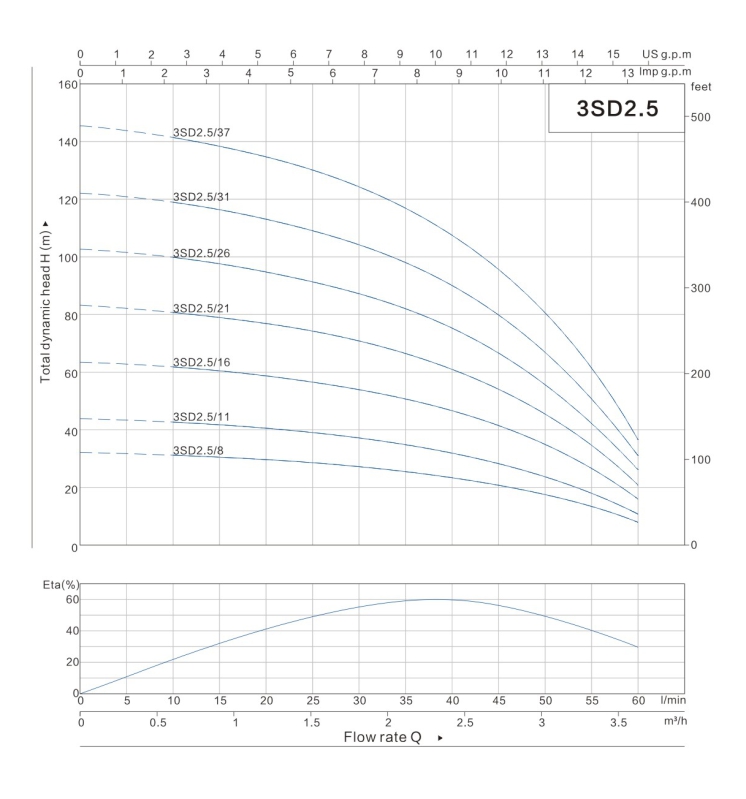

Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
