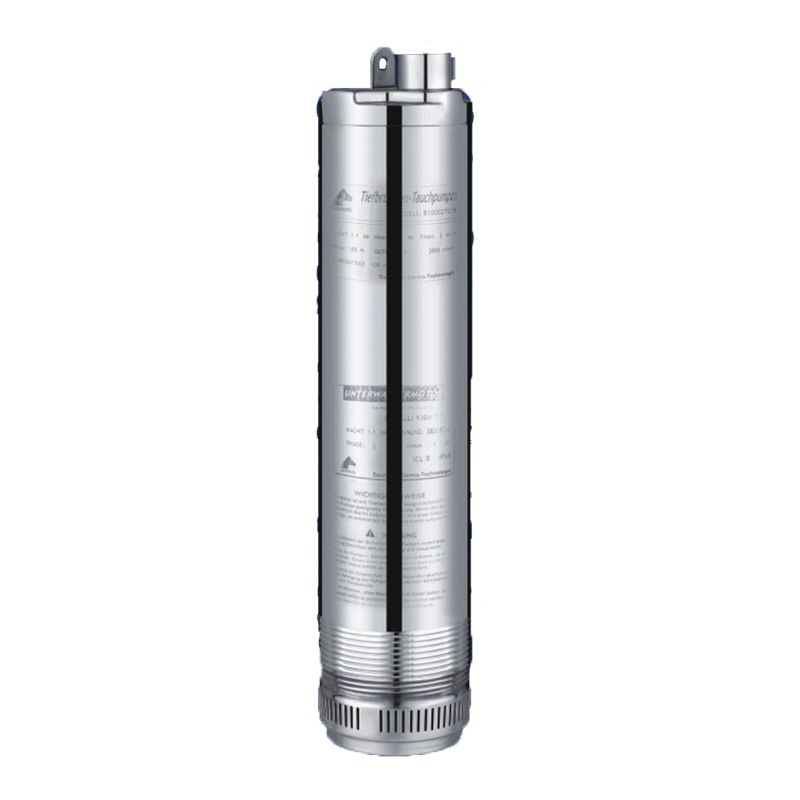

SC
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +35oC
Maximum sand content: 0.15%
Maximum immersion: 50m
Minimum well diameter: Φ130mm
Motor and pump
Rewindable motor
Single-phase: 220V-240V / 50Hz
Three-phase: 380V-415V / 50Hz
Equip with start control box or digital auto-control box
It's available to equip with floating switch

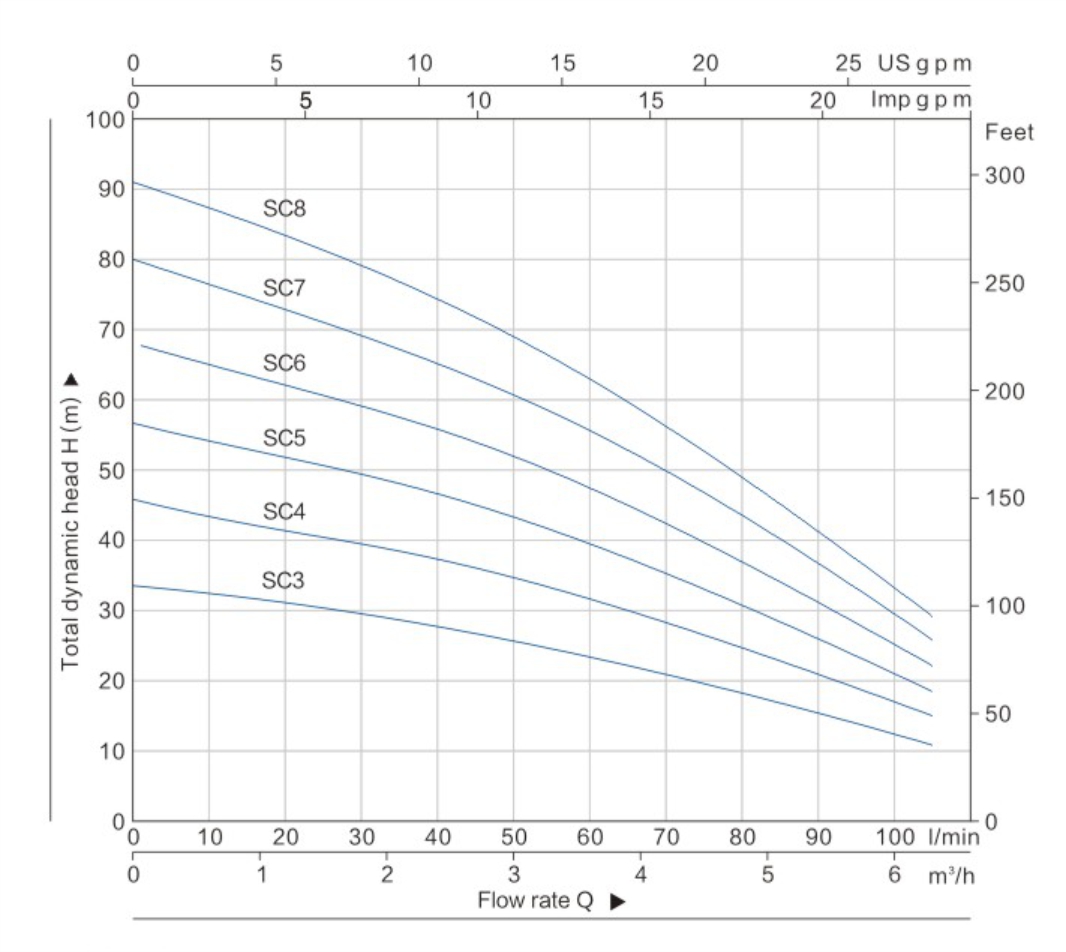

Curve tolerance according to ISO 9906
Options on request
Sprecial mechanical seal
Other voltages or frequency 60 Hz
