6SP60
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
For garden use and irrigation.
Operating conditions
Maximum fluid temperature up to +50oC
Maximum sand content: 0.25%
Maximum immersion: 100m
Minimum well diameter: 6"
Motor and pump
Rewindable motor or Hermetically-Sealed motor
Single-phase: 220V-240V / 50Hz
Three-phase: 380V-415V / 50Hz
①Direct start (1 cable)
②Star-delta start (2 cables)
Equip with start control box or digital auto-control box
NEMA dimension standard

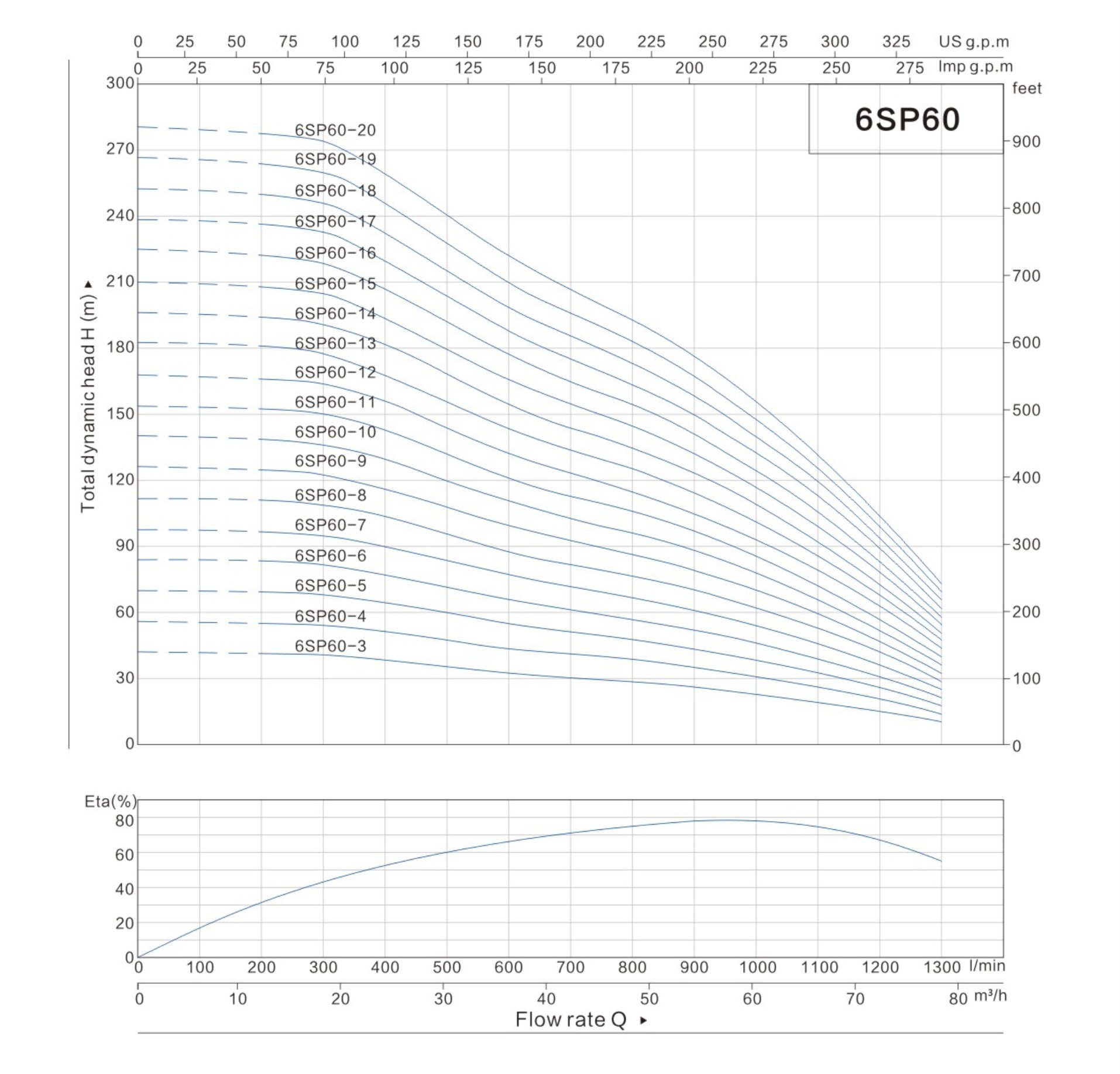

Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
